What is a true industrial VPSA Oxygen Plant



Atmospheric pressure adsorption + vacuum desorption: the core technology of true industrial VPSA oxygen generation equipment



In the field of industrial oxygen production, PSA and VPSA pressure swing adsorption technologies are often confused, and many users find it difficult to distinguish which VPSA oxygen generator is truly suitable for large-scale industrial scenarios. In fact, industrial-grade VPSA oxygen generators are not simply an improvement on PSA technology, but rather an independent system with fundamentally different core technology routes, hardware configurations, and performance indicators, specifically designed for industrial oxygen needs that require high oxygen production, low energy consumption, and long-term stable operation.



I. Core Technology Route: Low-pressure adsorption + vacuum desorption is the essence of VPSA



The core feature of a true industrial VPSA oxygen generator​ is that it adopts a pressure path of near-normal pressure adsorption + deep vacuum desorption, which is also the most fundamental difference between it and traditional PSA oxygen generators.

- PSA oxygen production: relies on a high-pressure environment of 0.6–0.8 MPa to adsorb oxygen, and then regenerates the molecular sieve by releasing the pressure at normal pressure. This method leaves more residual nitrogen and has limited molecular sieve regeneration efficiency; essentially, it relies on "high pressure" to lock in oxygen and complete the separation.

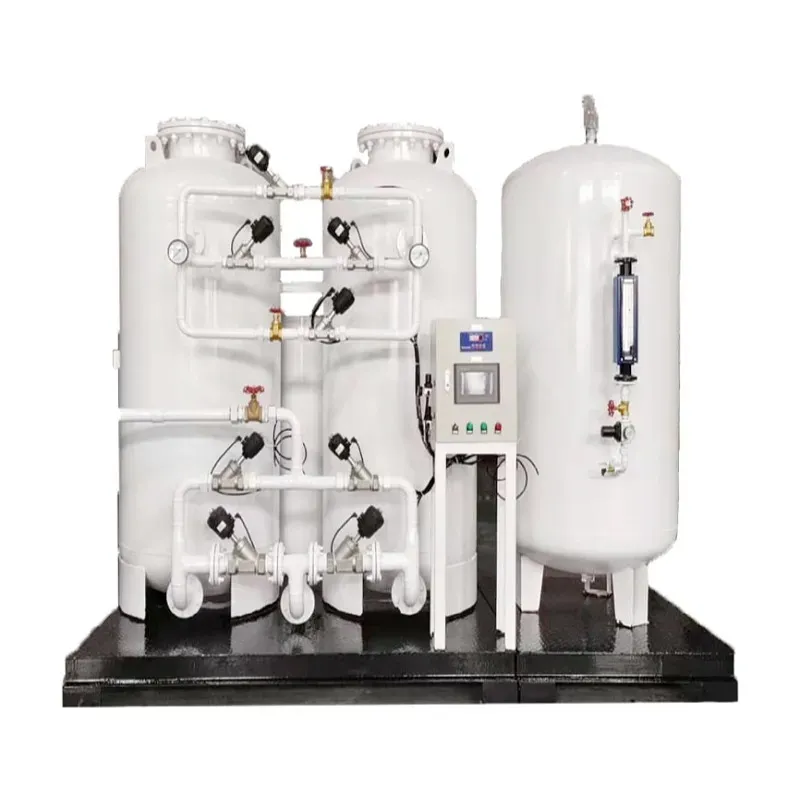

PSA product image (low gas volume, high energy consumption, low molecular sieve utilization efficiency).



- Industrial VPSA oxygen production: Adsorption is performed at near-atmospheric pressure (0.05–0.15 MPa), followed by complete desorption of nitrogen through a vacuum environment of -0.05–-0.09 MPa. It converts the compression work of PSA into vacuum work, and the isothermal efficiency of a vacuum pump is far higher than that of an air compressor. Therefore, overall energy consumption is reduced by 20%–40% compared to PSA, while the utilization rate of molecular sieves is increased by 15%–20%. This is the core foundation for achieving low-cost operation of industrial-grade equipment.

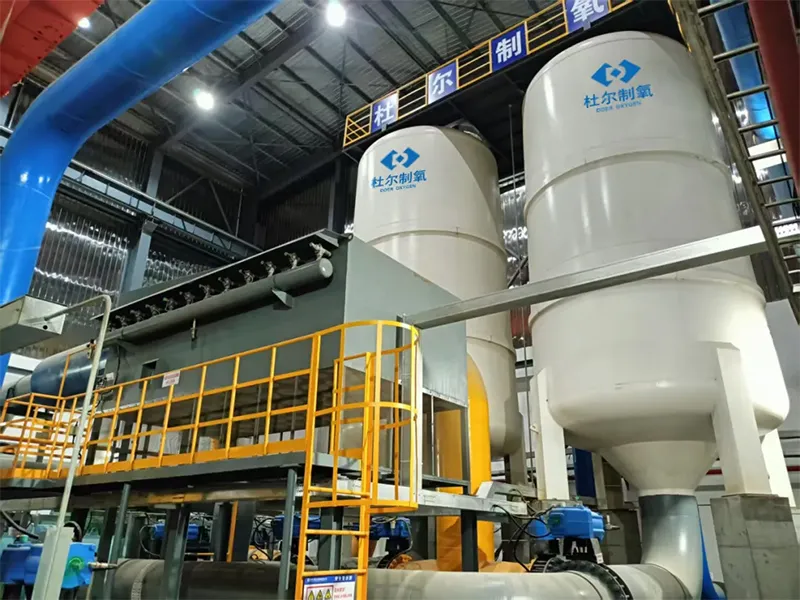

VPSA product images (low energy consumption, high oxygen production, easy maintenance, fully automated and unattended operation)



II. Core Hardware Configuration: A Dedicated System Designed for High-Load Industrial Use



True industrial VPSA oxygen generators differ completely from small-capacity PSA units in their hardware selection. All modules are designed around high oxygen production, long lifespan, and high stability. The core differences in their configurations are as follows:



Module	PSA Typical Configuration	Typical configuration of industrial VPSA ✅
Feed end	High-pressure oil-free screw (0.8 MPa)	Low-pressure Roots/centrifugal blower (50 kPa)
Regenerator	Atmospheric pressure venting + small amount of flushing gas	Liquid ring/dry vacuum pump (−55 kPa)
Adsorption tower	Pressure vessels with a diameter of 0.2–1.2 m	Large-capacity tower with a diameter of 1.5 to 4 meters
Molecular sieve	NaX or CaX zeolite (high static adsorption capacity under high pressure)	LiLSX lithium-based zeolite (fast kinetics at low pressure, low residual loading)
Switching valve	High-pressure pneumatic butterfly valve (life of 300,000 to 600,000 cycles)	Low-pressure/vacuum double eccentric butterfly valve (2 million cycles life)
control system	Small PLC + 10″ Touch Screen	Industrial-grade DCS or PLC control system (compatible with multiple control systems)



III. Key Performance Indicators: Meeting the core requirements of industrial scenarios



Ultimately, determining whether a device is a true industrial VPSA oxygen generator hinges on its actual operational performance. Its various indicators are optimized for continuous industrial production needs, resulting in a significant difference compared to PSA equipment.



Performance indicators	PSA equipment performance	Industrial VPSA equipment performance ✅
Single unit oxygen production	5～100 Nm³/h	100～10000 Nm³/h
Oxygen purity	90-94% (adjustable)	30-94% (wide adjustable range)
Export pressure	0.4～0.6 MPa	Oxygen compressors with pressures ranging from 5 to 20 kPa can be connected to high-pressure pipelines according to user needs.
Unit power consumption	0.6～0.8 kWh/Nm³ (including air compressor)	0.25～0.35 kWh/Nm³ (including blower + vacuum pump)
Load regulation	50-100% (Increased energy consumption during variable load operation)	50-100% (energy consumption remains constant during variable load operation)



IV. Suzhou Dürer: A source manufacturer specializing in industrial VPSA oxygen production



Suzhou Duer Oxygen Equipment Co., Ltd. has been deeply involved in the field of pressure swing adsorption (VPSA) oxygen generation for many years. With continuous technological accumulation and R&D innovation, it has created a full range of VPSA oxygen generation equipment that truly meets industrial-grade standards. Its products are sold to many countries and regions around the world, including Southeast Asia, South Asia, Turkey, Brazil, and Egypt, and have won widespread recognition from customers at home and abroad.



In recent years, the company has completed a comprehensive upgrade of its industrial VPSA equipment with a full range of gas volume from 200m³/h to 8500m³/h: the 200m³/h equipment with a small gas volume has achieved a triple breakthrough compared to traditional PSA oxygen production, with lower energy consumption, longer service life, and higher level of intelligence; the equipment with a large gas volume has achieved all-dimensional leadership in core indicators such as energy consumption, oxygen production scale, purity stability, and operation and maintenance costs, and can fully meet the oxygen demand of various industrial scenarios such as metallurgy, chemical industry, environmental protection, and building materials.



We are serious about making genuine industrial VPSA oxygen generators! As a direct manufacturer, we eliminate middlemen and offer a one-stop oxygen service, from solution design and equipment manufacturing to installation and commissioning. Please feel free to contact us with any industrial oxygen needs.
